UV Tube
  • Measurement of UV dosage, UV intensity & temperature
  • Value stored on SD card (PC software for analysis)

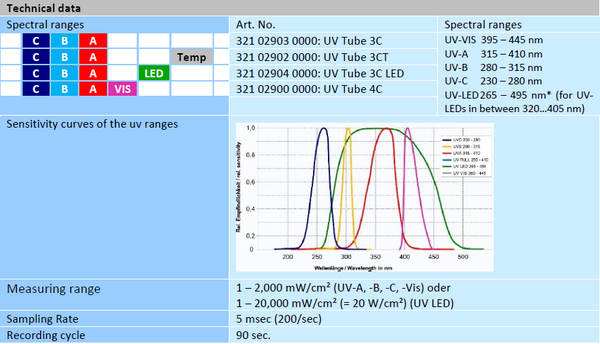

  • Versions for UVA, UVB, UVC, UV-VIS, UV-LED

The UV Tube is an integrator that has the ability to measure UV intensity, dosage and temperature. The shape of the device males it especially suited to bottle and tube machinery. It has been designed to include multiple sensors, allowing measurement of individual intensities and dose at each specific band.  There is an LED version of the device that allows alternating the measuring ranges between UV medium pressure lamps and UV LEDs. Our range of measuring devices conform with CE and UKCA.


Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV measuring device & calibration would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.

Product Image
  UV Tube
Product Manual
 * Please contact us directly
