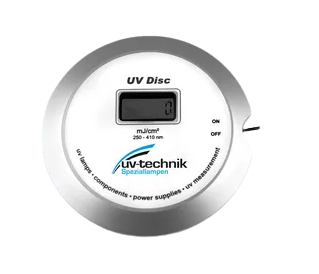

UV Disc
  • Measurement of UV dose in mJ/cm²
  • Automatic start/stop function as soon as UV is detected
  • Cumulative measurements possible

This instrument is particularly useful in a conveyorised curing environment, for example screen or plastic card printing. This unit provides an accurate UV dose reading in mJ/cm². This unit is the easiest of all the UV measuring devices to use. Just turn it on, ensure the UV sensor on the rear is facing the lamp, run it under the lamp and take the reading. This is our most popular model and is used in just about every industrial UV environment. It is available in a full UV spectrum model and individual waveband format, UVA, UVB, UVC, UV Visible, UV Full and LED. It is also available in a low pressure lamp version for lower intensity low pressure / amalgam lamp applications. The unit is small and light, therefore very portable.

* Please note, this device is also available for disinfection applications and those that use low pressure UV lamps. Please see here for more information about the UV Disc LP.

Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV measuring device & calibration would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.

Product Image

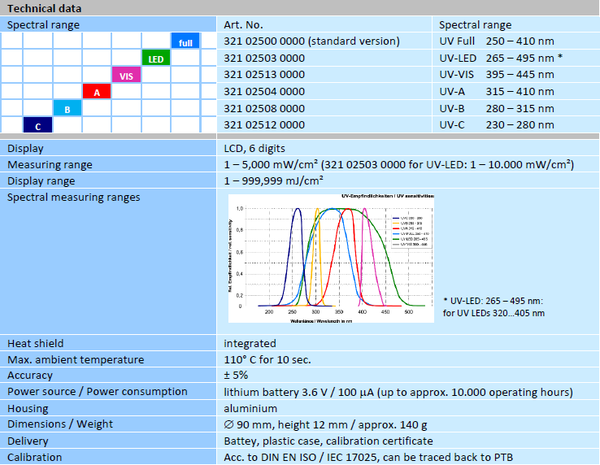

  UV Disc Datasheet
Product Manual
 * Please contact us directly
